Mobile Pyrolysis Machine (MPM) is an innovative, patented development, designed for the recycling and disposal of waste (feedstock) by low-temperature fast pyrolysis.
The MPM module together with MDM module (Mobile Drying Machine) are parts of Mobile Waste Recycling Unit (MWRU).
MAIN BENEFITS OF MOBILE PYROLYSIS MACHINE
The best ratio on the market in terms of characteristics:
price / performance / dimensions (mobility)
Possibility of Autonomous operation without external power sources.
Getting energy from waste.
Universal application of a single MPM module for different types of raw materials or waste
Simple design, high maintainability
and interchangeability of units and aggregates
The solution to environmental problems
Environmental safety for people and the environment
Full automatic operation, computer control system.
High profitability and quick payback
Payback period of MPM is 18 to 25 months

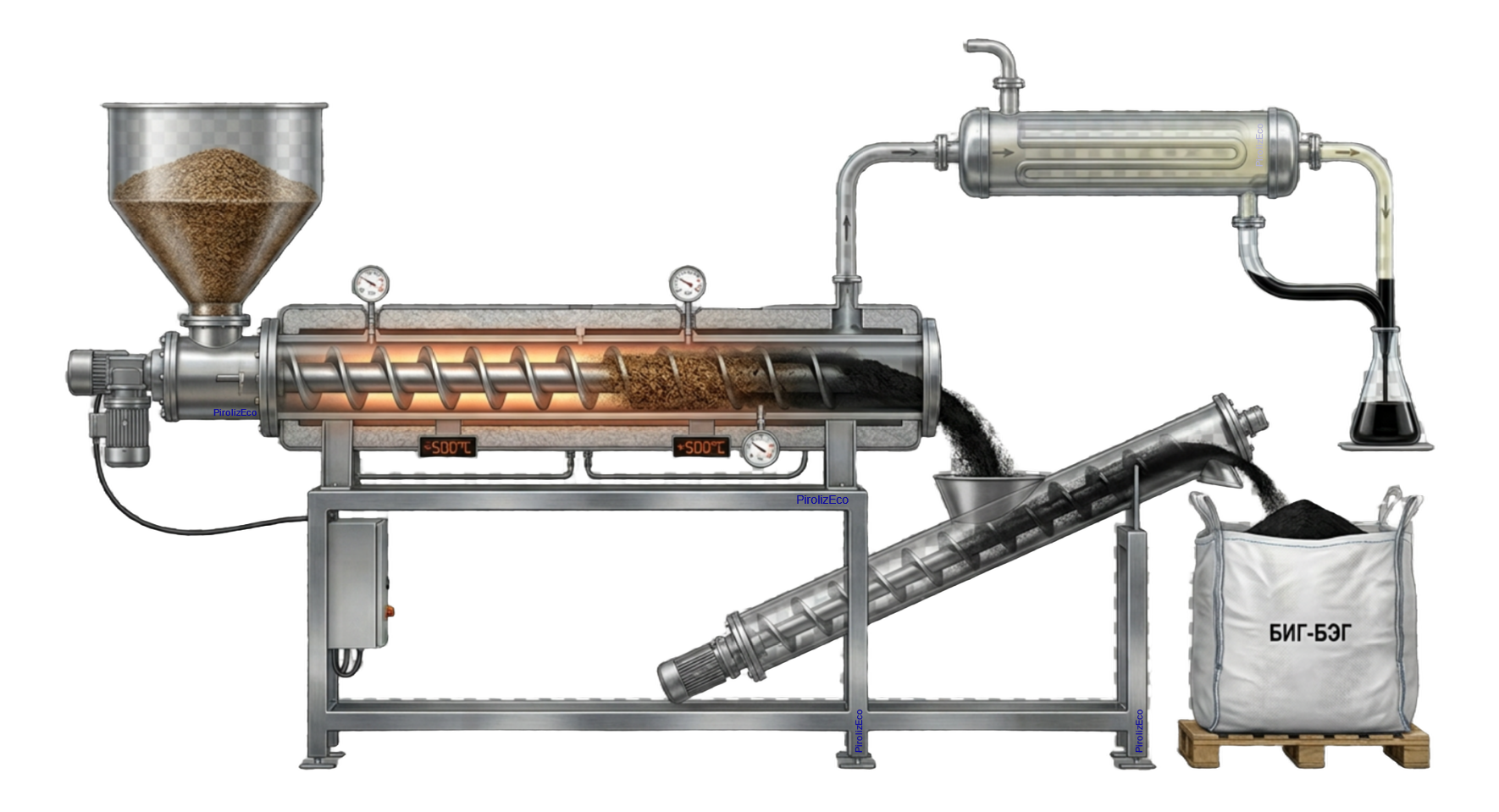

GENERAL SCHEME OF PROCESSES IN MOBILE PYROLYSIS MACHINE
One of the ways of waste decontamination is thermal decomposition, that is the decay of chemical compounds into smaller particles under the influence of temperature. As a result of pyrolysis, liquid and gaseous hydrocarbons (pyrolysis fuel and pyrolysis gas) are obtained, and solid charred substances (semicoke) remain in the residue.
The weight of the industrial model of Mobile Pyrolysis Machine is no more than 9 tonnes.

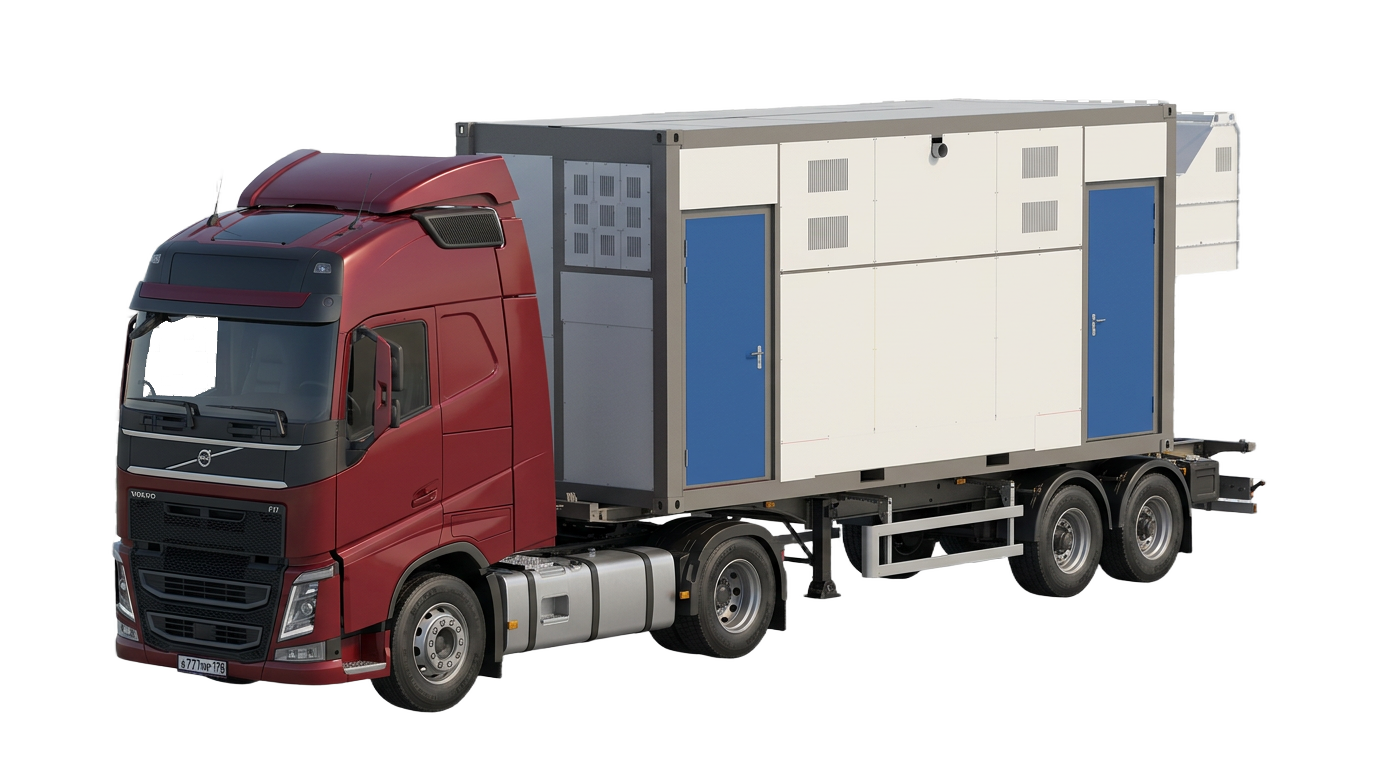

The mobility of the mobile pyrolysis machine is ensured by its capacity of transportation on almost any cargo truck.
The overall dimensions (HxWxL: 6058x2438x2896 mm) make it easy to transport it to the waste treatment sites
The MPM is assembled on a single metal frame.
Recycling (disposal) in the mobile modular screw pyrolysis machine is maintained continuously by means of moving waste (feedstock) inside the pyrolysis reactor of the machine.
The movement of waste (feedstock) is carried out by a continuous moving device.
The mobile pyrolysis machine is a separate construction. The feed of feedstock to the MPM can be arranged either manually or mechanically, by means of a screw conveyor and/or some other conveyor.
The modularity of the mobile pyrolysis machine is characterised by the fact that it contains internally connected assemblies (units), which can be exchanged for analogues ones with different engineering characteristics, allowing various objectives to be achieved.
Waste (feedstock) to be recycled in the mobile modular screw pyrolysis machine should, when needed, be ground to a certain size fraction and dried to the required moisture content.
The mobile pyrolysis machine can be completely independent of external fuels and energy sources. It can run on its own pyrolysis fuel or gas obtained from the recycling process on the machine.
Capacity (estimated) of one industrial mobile pyrolysis machine ranges from 10 to 55 tonnes per day depending on the MPM model, type of feedstock and its density.
If there is a need to recycle larger volumes, there is an option of using several mobile pyrolysis machines in one complex (modular principle).
